I. Introduction
A. Importance of capacitors in electronic circuits
Capacitors serve various vital tasks in electronic circuits. They can store energy, regulate voltage, filter signals, and couple them. Capacitors, for example, minimize voltage ripples in power supply circuits and ensure that sensitive components receive consistent power. Similarly, capacitors in audio circuits reduce distortion in amplifiers by blocking DC signals while allowing AC signals through. Additionally, capacitors are critical in timing circuits to precisely control signal frequency and duration.
B. Overview of the article’s scope
This article covers several elements of capacitors, including their types, functions, applications, and certain considerations. In addition, some capacitor recommendations will be provided to assist readers use capacitors successfully and avoid common errors. Overall, this work tries to provide a complete overview to capacitors for both novice and seasoned electronics hobbyists.

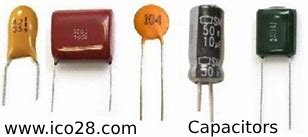

II. Types of Capacitors

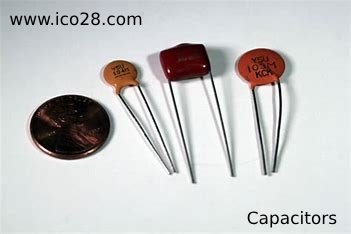

A. Electrolytic capacitors
Electrolytic capacitors have two polarities: positive and negative. They have a lower frequency response and higher leakage current than other types of electrolytic capacitors.
B. Ceramic capacitors
Ceramic capacitors offer small size, low cost and excellent high frequency characteristics. Its capacitive stability and temperature coefficient are determined by the dielectric used, which is ceramic. Ceramic capacitors are widely utilized for decoupling, coupling, and filtering applications.
C. Film capacitors
The plastic film used as dielectric in film capacitors has three main characteristics: high temperature resistance, low leakage and high stability. It is available in metal, polyester and polypropylene films. Film capacitors have very low dielectric absorption and dissipation ratios and are suitable for high frequency filtering, audio applications and precision timing circuits.
D. Tantalum capacitors
Tantalum capacitors are helpful for applications that need both high capacitance values and compact dimensions because of their high capacitance density and low equivalent series resistance (ESR).
E. Polarized vs. non-polarized capacitors
Capacitors are divided into polarised and non-polarised according to their construction. Polarised capacitors (such as electrolytic and tantalum capacitors) have distinct positive and negative poles and must be connected with the correct polarity. Unpolarised capacitors (such as ceramic and film capacitors) have no polarity restrictions and can be connected in any way.
III. Functions of Capacitors
A. Energy storage
Energy storage is one of a capacitor’s main functions. A capacitor stores electrical energy as an electric field when a voltage is applied to it. The energy can be released as needed to give a circuit a sudden boost in power.
B. Filtering
Capacitors selectively pass or stop electrical signals at specified frequencies, so filtering out unwanted noise or ripple. By filtering out the alternating current, capacitors can be utilized in power supply circuits to smooth the DC output voltage.
C.Coupling
A capacitor transmits an AC signal from one circuit stage to another while blocking the DC component. This allows the AC signal to be transmitted without affecting the DC bias of the circuit. In amplifier circuits, capacitive coupling is commonly used to transfer audio signals between circuit stages while blocking any DC offset.
D.Timing
Timing Capacitors regulate charging and discharging rates in timing circuits to ensure correct time intervals. Capacitors and resistors can be combined to provide a wide range of time constants for precise timing signals.
E. Decoupling
Decoupling capacitors stabilise voltage levels and reduce noise by providing a local reserve of charge. They act as a buffer between different components to ensure a stable supply voltage and minimise voltage fluctuations caused by sharp changes in current demand.
IV. Applications of Capacitors
A. Power supply circuits
Capacitors are used in power supply circuits to reduce noise and even out voltage fluctuations. To keep the supply voltage for delicate electronic components constant, they store energy at peaks and release it during troughs.
B. Signal processing circuits
Capacitors are employed in signal processing circuits to provide coupling, filtering, and timing. In coupling applications, capacitors allow AC signals to pass while blocking DC components, allowing signals to be transmitted between circuit stages without influencing their DC bias. Capacitors help remove undesirable noise and ripple from the signal, boosting its quality and clarity. Furthermore, timing circuits use capacitors to generate exact timing intervals that synchronize and coordinate the various signals in an electrical system.
C. Audio circuits
Capacitors are employed in audio circuits for signal conditioning, filtering, and matching impedance. To prevent sound distortion, they connect the amplifier’s audio signal to the various audio equipment stages. By eliminating low-frequency noise from the signal and preventing DC offsets, capacitors contribute to better audio quality.
D. Radio frequency (RF) circuits
In radio frequency (RF) circuits, capacitors are used to tune, impedance match, and filter RF signals. They determine the frequency response and resonant frequency of RF circuits. Capacitors also block DC signals while allowing RF signals to pass through, isolating the RF stage from DC bias and interference.
E. Motor start/run circuits
Capacitors are often used in motor start/run circuits to provide the necessary phase shift and starting torque for induction motors. After starting, a capacitor briefly increases the motor’s starting torque by creating a phase difference between the motor windings that causes the motor to overcome inertia and begin to rotate. On the other hand, run capacitors increase motor efficiency and power factor by maintaining a consistent phase angle between voltage and current during operation.
V. Capacitor Selection Considerations
A. Voltage rating
The maximum voltage that a capacitor can safely withstand without failure is called the rated voltage. Selecting a capacitor with a voltage rating higher than the maximum voltage expected in the circuit will prevent catastrophic failure.
B. Capacitance value
The amount of charge a capacitor can store per unit voltage is determined by its capacitance value. Greater energy storage or filtering applications suit capacitors with bigger capacitance values, while timing and coupling applications suit capacitors with lower capacitance values.
C. Temperature stability
Temperature affects the electrical properties of capacitors, altering their reliability and performance. To ensure constant performance throughout time, capacitors must be selected with suitable temperature stability.
D. Size and package type
Space constraints, mounting requirements, and climatic conditions all influence the capacitor size and packaging type selected. Surface mount capacitors are frequently used in small electronic devices, but through-hole capacitors are better suited for prototyping and applications that demand high mechanical stability.
E. Environmental factors
Environmental factors, such a s driving, walking, encephalitis and egg chemistry, may affect the excessive effects on the lifestyle and life support of the sport industry, the excessive demand for computerisation and the need for free-movement limits to exceed death, age, ticks, pressures, – or a driver’s coat for the use of high pressure devices
VI. Practical Tips for Working With Capacitors.
A. Proper handling and installation
During installation, check that the capacitors are properly orientated and that polarised capacitors adhere to the polarity recommendations. To avoid overheating or damage to the solder connections, the capacitors should be soldered to the board using the proper techniques.
B. Avoiding common mistakes
Common capacitor issues include the use of wrong voltage ratings, the selection of capacitors with insufficient capacitance values, and faulty circuit design.
C. Troubleshooting capacitor-related issues
The common difficulties of capacitors include leakage, deterioration, and faults caused by overvoltage or overheating. Visual inspection can detect physical damage or overheating, such as capacitor expansion or leakage. In addition, checking the adequacy of welded joints to ensure proper installation and positioning of capacitors can help diagnose and solve problems caused by improper installation or handling.
VII. Conclusion
Capacitors are the core components of electronic systems, used for storing and releasing electricity, filtering unnecessary noise, improving signal communication and timing. With the development of technology and the complexity of electronic devices, the importance of capacitors is increasing day by day, which emphasizes the necessity of appropriate knowledge, selection, and management of these key components in electronic design and manufacturing.
