I. Introduction
In the world of computers, knowing how a Hard Disk Drive (HDD) works is essential for both consumers and experts. It helps experts enhance system efficiency and handle storage-related issues while empowering users to make educated decisions regarding storage solutions.
The purpose of this article is to explore the internal workings of HDDs and provide light on the complex systems that allow data to be stored and retrieved. We will examine the different parts of an HDD, data storage and access methods, performance-influencing variables, difficulties encountered, and potential developments in HDD technology. Readers will acquire a thorough grasp of HDD operation and its importance in contemporary computer systems via this investigation.
II. Basics of HDD Technology
A. Definition of HDD and its role in computing
A Hard Disk Drive( HDD) is a non-volatile storage device used to store and recover digital data. It plays a pivotal role in computing by furnishing a high-capacity storehouse for operating systems, operations, and stoner lines. Unlike unpredictable memory( RAM), HDDs retain data even when powered off, making them ideal for long-term storage.
B. Literal Background and Elaboration of HDD Technology
HDD technology has a rich history dating back to the 1950s, when the first commercially available HDD, the IBM 350 RAMAC, was introduced. Also, HDDs have experienced significant elaboration in terms of capacity, speed, and form factor. mileposts include the transition from large, big drives to lower, advanced-capacity models, as well as advancements in data viscosity and read/write capabilities.

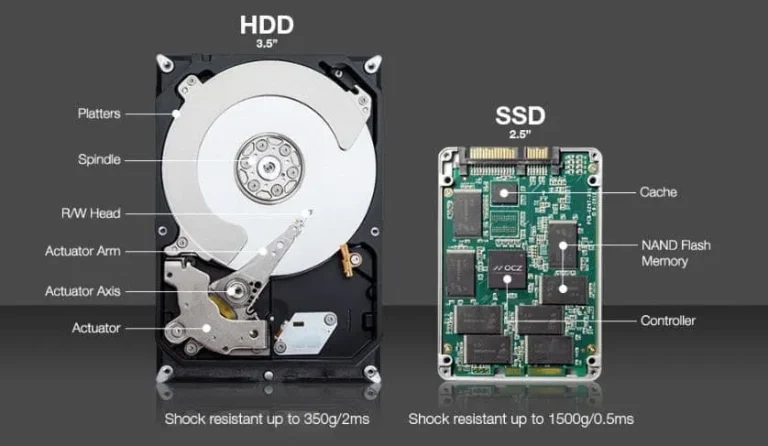

C. Comparison with Other Storage Technologies
While HDDs have long been the dominant form of mass storage in computing, they face competition from other storage technologies, similar to solid-state drives( SSDs) and pall storage. HDDs offer advantages in terms of cost per gigabyte and storage capacity, making them suitable for operations requiring large quantities of data. Still, SSDs offer brisk access times and lesser continuity due to their lack of moving corridors, leading to their relinquishment in high-performance computing surroundings and movable bias.

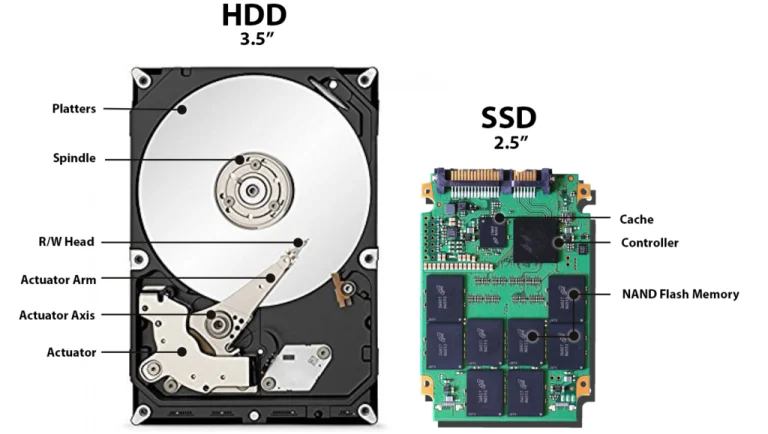

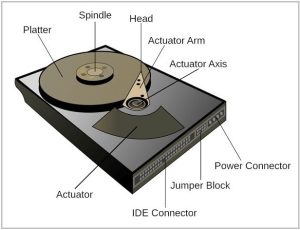

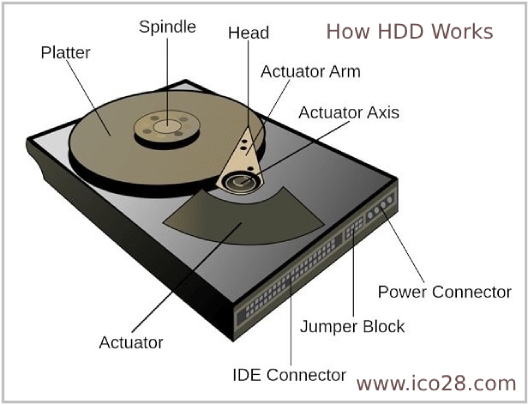

III. Inner Components of HDD
A. Magnetic disks (platters)
Glamorous disks, frequently referred to as chargers, are the primary storage medium in a hard disk drive( HDD). These indirect disks are generally made of aluminum or glass carpeted with a thin subcaste of glamorous material. Data is stored on the chargers in the form of glamorous patterns, which are arranged in concentric tracks and sectors. The number of chargers in an HDD varies depending on the storage capacity of the drive, with ultramodern HDDs generally containing multiple chargers piled on a spindle.
B. Read and Write Heads
Read/write heads are small electromechanical biases located on the ends of the selector arms in an HDD. These heads are responsible for reading data from and writing data to the glamorous chargers. When reading data, the heads describe the glamorous flux changes on the server’s face, interpreting them as double data. During jotting, the heads induce glamorous fields to alter the glamorous parcels of the server, garbling the data.
C. Actuator Arm and Motor
The selector arm is a pivotal element responsible for situating the read/write heads directly over the requested position on the chargers. It consists of a rigid arm with read/write heads attached to one end and a pivot medium at the other. The selector arm is controlled by the HDD’s servo system, which uses feedback from detectors to move the arm precisely. The selector arm is driven by a voice coil motor( VCM), which applies glamorous forces to move the arm back and forth across the chargers.
D. Spindle and Bearings
The spindle is a central shaft that runs through the center of the chargers and holds them in place. It rotates the chargers at high speeds, generally ranging from 5,400 to 15,000 revolutions per nanosecond( RPM), allowing the read and write heads to pierce different areas of the chargers snappily. The spindle motor, generally a brushless DC motor, provides the necessary necklace to spin the chargers easily. Bearings are used to support the spindle and reduce disunion, ensuring smooth gyration and stable operation of the HDD. High-quality components are essential for minimizing vibration and extending the lifetime of the drive.
IV. How Data is Stored and Accessed

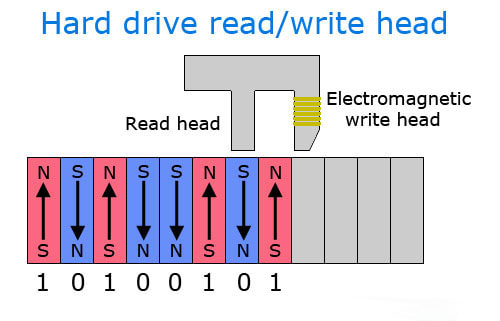

A. Magnetization of disk surfaces
Data storage in HDDs relies on the magnetization of disk surfaces. Each platter is coated with a magnetic material, typically a thin layer of iron oxide. When data is written to the disk, the read/write heads generate magnetic fields, which align the magnetic domains on the disk’s surface in patterns representing the stored information. The magnetized areas retain their orientation even when the power is turned off, enabling persistent storage of data.
B. Reading and writing processes
Reading and writing data on an HDD involves precise manipulation of magnetic fields. During the writing process, the read/write heads apply controlled magnetic fields to the disk surface, altering the orientation of the magnetic domains to represent the data being stored. Conversely, during the reading process, the heads detect the magnetic changes on the disk and convert them into electrical signals, which are then processed by the drive electronics to retrieve the stored data.
C. Role of read/write heads and actuator arm movement
The read/write heads are essential components responsible for accessing data on the disk. Mounted on the ends of the actuator arms, these heads move rapidly across the disk surfaces, positioning themselves over the desired tracks for reading or writing data. The actuator arms are controlled by a servo mechanism, which precisely positions them to access specific locations on the disk. The movement of the heads and actuator arms is synchronized to ensure accurate and efficient data access.
D. Access time and latency
Access time in HDDs refers to the time it takes for the read/write heads to locate and access the requested data on the disk. It comprises several components, including seek time (the time taken to position the heads over the desired track), rotational latency (the time for the target sector to rotate under the heads), and transfer time (the time taken to read or write the data once the heads are in position). Together, these factors determine the overall latency of the drive, influencing its performance in data-intensive applications.
V. Understanding HDD Performance
A. Factors affecting read/write speed
Several factors influence the read/write speed of a hard disk drive (HDD). Firstly, rotational speed plays a crucial role; higher RPM (rotations per minute) drives typically offer faster read/write speeds. Additionally, data density matters; drives with higher data density store more data per unit area, leading to faster read/write operations. The interface type, such as SATA or PCIe, also affects speed, with newer interfaces typically offering faster data transfer rates. Finally, the efficiency of the drive’s controller and firmware can impact speed by optimizing data handling processes.
B. Impact of disk fragmentation
Disk fragmentation occurs when lines are stored in non-contiguous clusters on the fragment, leading to slower read and write speeds. Fragmentation increases the time it takes for the HDD to pierce and recoup data, as the read and write heads must move to different locales on the fragment to pierce a single train. Over time, as fragmentation accumulates, performance decline becomes more conspicuous. exercising defragmentation tools can help reorganize data on the fragment and ameliorate performance by reducing fragmentation and optimizing train placement.
C. Cache memory and its part in performance optimization
Cache memory, frequently included in ultramodern HDDs, plays a pivotal role in performance optimization. By storing constantly penetrated data in a high-speed cache buffer, the HDD can reduce the time needed to recoup generally used information, enhancing overall system performance. The cache acts as a temporary staging area, holding data that the system is likely to request again in the near future. This helps alleviate the impact of slower mechanical factors within the drive by providing brisk access to constantly penetrated data, effectively perfecting the perceived speed of the drive.
VI. Conclusion
The conclusion is that understanding how HDD works is crucial for both users and professionals in the computing industry. By delving into the inner mechanisms, we gain insights into the intricate processes that enable data storage and retrieval. From the magnetic disks to the read/write heads and actuator arm, each component plays a pivotal role in the functionality of the HDD. Understanding the factors influencing HDD performance allows for better optimization and utilization of these storage devices. As technology continues to evolve, addressing challenges such as heat management and physical shock becomes increasingly important. Looking ahead, the future of HDD technology holds promise, with ongoing innovations and advancements shaping the storage landscape.
