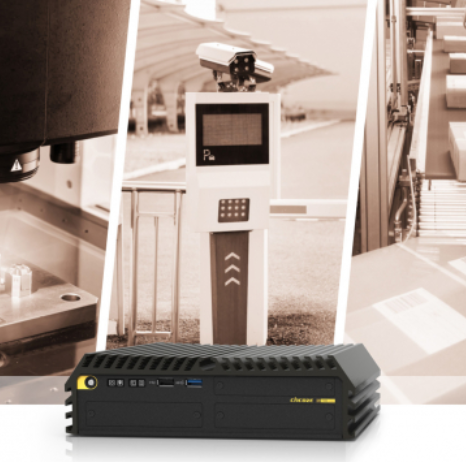

The series provides an ideal blend of high-performance computing with essential I/O that has garnered attention from large-scale Edge computing projects worldwide since its launch. The DV-1100 is particularly suited for applications that require real-time large-scale image processing, data computing, and high-speed transmission, such as machine vision, license plate recognition, and smart logistics.
Product counting and colour detection with machine vision
Machine vision is gradually replacing manual inspection because of its efficiency and accuracy in high-speed product inspection, counting, and colour and variety identification. The DV-1100 has the performance capabilities for these tasks, with up to 13/12 generation Intel Core i9 (Raptor Lake-S / Alder Lake-S) processor with 24 cores, the UHD 770 with Intel Xe architecture for superior GPU image classification inference performance, up to 32GB DDR5 memory (4800MHz), and high-speed NVMe solid-state drives. The DV-1100 also has high-speed I/O interfaces (2.5G LAN and 10Gbps USB3.2 Gen2x1) to connect peripheral devices such as cameras, sensors, and light sources. The DV-1100 has multiple international certifications, including the US UL safety certification and the EMC standard for industrial environments (EN 61000-6-2/4), ensuring uninterrupted and stable operation in harsh environments.
Parking lot license plate recognition
In parking lot management, the license plate recognition system automatically identifies the license plate numbers of vehicles entering and exiting, and controls the entry and exit gates, improving management efficiency and convenience. As the key of the license plate recognition system, the DV-1100’s high computing performance enables real-time image processing, and with a compact size of only 224.1 x 162 x 62 mm, there is no need to worry about limited installation space. Storage needs for large amounts of license plate image data are handled by the DV-1100’s built-in 2.5″ HDD/SSD slot for large-capacity storage. Additional expansion is enabled through M.2 Key B, M.2 Key E, and M.2 Key M slots for adding wireless communication (5G, WiFi, GNSS) and additional storage functions as needed. The DV-1100 also has high-standard industrial-grade protection and supports wide temperature (-40°C to 70°C) and wide voltage (9 to 48 VDC), which is particularly suitable for outdoor parking lot license plate recognition.
Automatic mail sorting machine
Modern postal companies use automatic mail sorting machines with optical character recognition (OCR) technology to quickly classify mail and speed up processing. The DV-1100 can connect to various external devices, such as sensors, cameras, and scanners through its native I/O (2x LAN, 6x USB, 2x COM) and additional I/Os (such as HDMI, DisplayPort, COM, and DIO) added using Cincoze’s exclusive expansion module technology. The DV-1100 also provides multiple industrial protections for automatic mail sorting machines during operation, such as overvoltage, overcurrent, and ESD protection. It also complies with the US military anti-shock vibration standard (MIL-STD-810H), ensuring high reliability and stability in an operating environment with continuous vibrations.
Original article source:
FAQ
- What is the Cincoze DV-1100?
The Cincoze DV-1100 is a fanless, rugged industrial computer designed for edge computing applications. It features a compact design, robust build, and is suitable for use in harsh environments. It offers multiple I/O interfaces and expansion options, making it suitable for IoT, factory automation, transportation, and other edge computing scenarios.
- What are the main features of the DV-1100?
– Processor: Supports Intel® 8th/9th Gen Core™ and Pentium® processors (LGA1151 socket).
– Memory: Supports up to 64 GB DDR4 memory.
– Storage: Supports 2x 2.5″ SATA HDD/SSD bays and 1x M.2 2280 M-key slot for NVMe SSD.
– Expansion Slots: 2x full-size Mini-PCIe slots, 1x M.2 E-key slot, 1x M.2 B-key slot, and 2x PCI/PCIe expansion slots (depending on model).
– I/O Ports: Multiple LAN, USB 3.2, COM, HDMI, DisplayPort, and DVI-D ports.
– Operating Temperature: Wide operating temperature range from -40°C to 70°C.
– Power Input: Supports 9 to 48 VDC wide-range power input.
– Certifications: Complies with various industrial certifications, including CE, FCC, and EN 50155.
- What applications is the DV-1100 suitable for?
The Cincoze DV-1100 is suitable for applications such as:
– Industrial automation and control
– Smart manufacturing and factory automation
– Transportation and fleet management
– Retail and digital signage
– AI-based applications, including machine vision and edge analytics
– IoT gateways for edge data processing
- Can the DV-1100 support AI and machine learning applications?
Yes, the DV-1100 can support AI and machine learning applications, especially when equipped with an appropriate CPU and GPU combination. It has expansion slots that can accommodate graphics cards or AI accelerators, allowing it to handle computationally intensive tasks like AI inference and data analytics at the edge.
- What operating systems are compatible with the DV-1100?
The DV-1100 is compatible with a variety of operating systems, including:
– Microsoft Windows 10/11
– Windows IoT Enterprise
– Linux distributions such as Ubuntu, CentOS, and Debian
– Other real-time operating systems (RTOS) depending on application requirements
- How is the DV-1100 cooled without a fan?
The DV-1100 uses a fanless design that relies on passive cooling techniques, such as a heat sink and optimized thermal paths. This design minimizes the risk of failure from moving parts, making it more reliable for long-term use in harsh or dusty environments.
- Is the DV-1100 customizable?
Yes, the DV-1100 offers multiple customization options to fit specific requirements, including different CPUs, RAM configurations, storage options, and expansion modules for additional connectivity, such as wireless communication or additional I/O ports.
