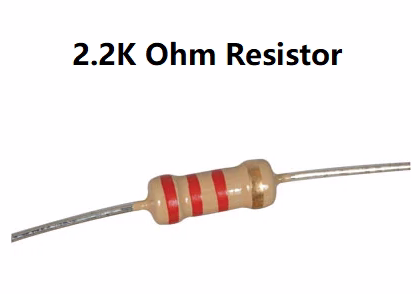

Understanding the color coding of resistors is essential to comprehending their functions and values in electronic circuits. We will particularly cover the method of colour-coding 2.2k resistors in this comprehensive article. You will have a solid understanding of how to decipher a 2.2k resistor’s color bars and calculate its value with confidence by the end of this tutorial.

Understanding Resistor Color Coding

A standardized technique for representing the resistance value of resistors is the use of resistor color codes. It uses color bars printed on the resistor body, each of which stands for a different multiplier or number. The significant digits, multiplier, and tolerance are typically shown by four or five bars in the color bars. Engineers and enthusiasts can reliably identify resistor values for their electronic projects by comprehending the color-coding method.

Components of the 2.2k Resistor Color Code

It’s critical to comprehend the significance of each color band when interpreting the color code of a 2.2k resistor. The resistor value’s significant digits are shown by the first two bars, the multiplier (in steps of ten) is shown by the third bar, and the tolerance level is shown by the fourth bar.  Additionally, some resistors may include a fifth band representing the temperature coefficient.

Decoding the Color Bands

The first two bars, which stand for important digits, must be identified in order to begin decoding the 2.2k resistor color bars. The resistor color coding table shows that each color has a corresponding numerical value. Next, determine the multiplier indicated by the third band, which specifies the number of zeros to append to the significant digits. In order to get the tolerance level—which denotes the permitted departure from the nominal resistance value—lastly, look at the fourth bar.

Practical Examples and Exercises

You get better at reading resistor color codes with practice. Get a range of 2.2k resistors and practice deciphering their color bars to engage in practical exercises. Additionally, you can assess your knowledge and validate your interpretations by using internet tools like simulators and resistor color coding calculators. To further enhance your comprehension of the applications of 2.2k resistors, examine real-world circuit examples.

Tips for Accuracy and Troubleshooting

To ensure accurate interpretation of 2.2k resistor color codes, consider the following tips:

1. Use adequate lighting and magnification to clearly distinguish between color bands.

2. Verify your readings with multiple sources, such as datasheets or online calculators.

3. To prevent mistakes, double-check your figures and interpretations.

4. If you detect inconsistencies or doubt, look for advice and troubleshooting from seasoned experts or online forums.

Conclusion: Mastering the Art of Deciphering 2.2k Resistor Color Code

Understanding a 2.2k resistor’s color code is an important ability for both experts and enthusiasts in electronics. With practice and comprehension of the color code’s elements, you may accurately ascertain the resistance value of 2.2k resistors and successfully use them in your circuit designs. Take on the task of understanding resistor color codes and develop your abilities with ongoing education and practical experience.
